The ST Spray Marker is a revolutionary marking product for industrial coding applications. Dot, stripes, and patterns can be easily printed by sending signals to the solenoid valve manually or with a PLC. With extremely short cycle times of 20 milliseconds, print speeds of up to 100 meters/minute (325 feet/minute) are easily possible. The dot size is controlled by the size nozzle used, and adjustment of the material pressure and head settings.
Designed for maximum uptime.

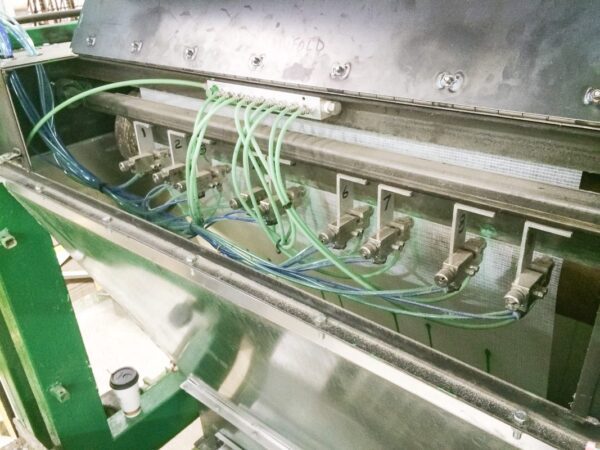

The ST Spray Marker sets itself apart from other systems because of its simplicity of use, low maintenance needs, and excellent repeatability of high quality marks in any mounting direction. The compact design allows for trouble-free integration into nearly any production environment. Designed to apply paints without the clogging problems typical of other spray marking systems, the ST provides an unparalleled level of reliability for color coding and inspection marking in a variety of manufacturing applications.
- All-metal spray heads use nozzle sealing technology to prevent clogs
- Integrated cleaning function ensures immediate operating readiness

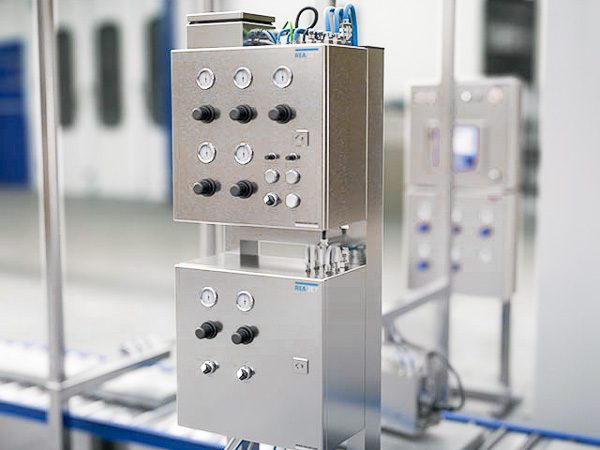

- Components are easily switched out for maximum system uptime
| Spray Heads | SR-1 |
SRM-1 |
SR-5 |
SR-7 |
|---|---|---|---|---|
| Dots and dotted lines (round spray head) |
3 to 30 mm | 3 to 30 mm | 3 to 30 mm | 3 to 20 mm |
| Continuous lines (round nozzle head) |
3 to 25 mm | 3 to 25 mm | 3 to 25 mm | 3 to 20 mm |
| Wide surface area marking (flat nozzle head) |
20 to 60 mm | 20 to 60 mm | 20 to 60 mm | |
| Suitable for water-, dye-, and pigment-based inks | ✓ | ✓ | ✓ | ✓ |
| Suitable for abrasive consumables (pigmented ink, UV-curing paint) | ✓ | |||
| Spray distance | 3 to 100 mm | 3 to 100 mm | 3 to 100 mm | 3 to 60 mm |
| Fluid circulation | integrated | integrated | optional | integrated |
| Spray control | internal | internal | additional valve | additional valve |
| Nozzle and air control head flushing | ✓ | ✓ | ✓ | |
| Dimensions, standard version (L x W x H) | 130 x 50 x 21 mm | 130 x 50 x 21 mm | 65 x 40 x 25 mm | 37 x 20 x 20 mm |
| Weight | 400 g / 14 oz | 400 g / 14 oz | 200 g / 7 oz | 90 g / 3.2 oz |
Build Options
The front and rear of the heads are available in stainless steel, nickel-plated brass, or aluminum to accommodate different fluids, environmental requirements, and weight requirements.
Nozzle Sizes
Heads can be supplied with different nozzles to achieve the ideal dot or stripe size for your coding application. Available nozzle sizes are 0.3, 0.5, 0.8, 1.0, 1.2, and 1.5 mm.
Use a variety of paint and ink types and colors for marking porous and non-porous materials such as metals, plastics, and textiles.
- All-purpose solvent-based paints
- Bright pigmented paints
- Water based paints
- High temperature paints
- Special and customized inks
