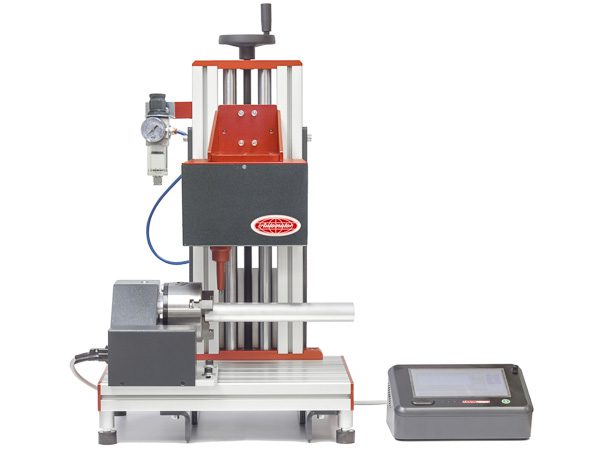

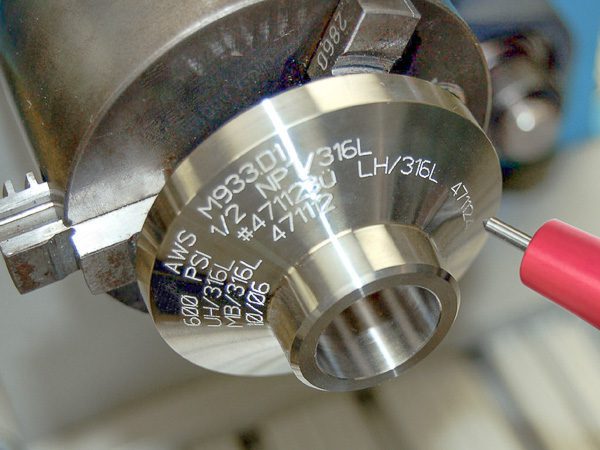

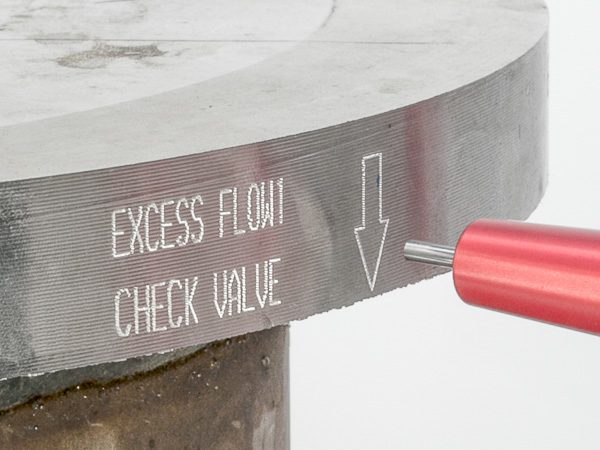

Automator rotary dot peen marking systems are made for programmable marking around the circumference or along the axis of round parts by rotating the part in sync with the marking pin. Data entry can be manual or automated for error-free marking with the AC500 touchscreen controller. Automatic date coding, serial numbering, 2D coding are standard features.
Options

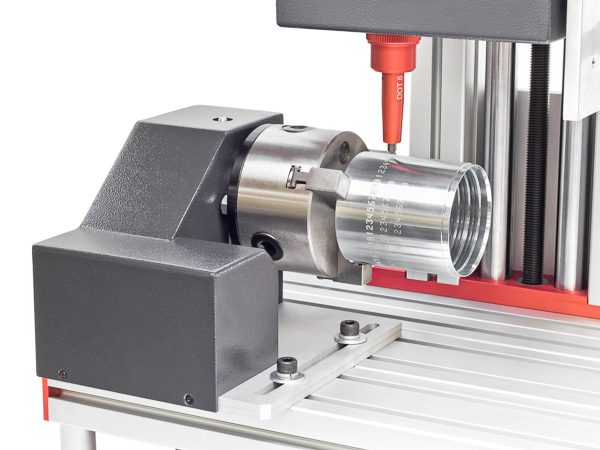

Several types of rotary part holding fixtures and tables are available. Standard fixtures use a three-jaw, self-centering, adjustable chuck to hold parts of various sizes during marking.
Options such as pneumatic release pedals and cradle roll supports enable fast and easy part loading. Let Pannier design a system best suited for your marking needs.
Three-jaw chucks can hold parts on their ID or OD, depending on the material and wall thickness. See specification tables below.
Light to Medium Duty Rotary Fixture
Maximum Part Weight: 8.3 kg / 18.3 lbs*
Item # M3M00-014
| Min | Max | |||
| mm | in | mm | in | |
| d1 | 2 | .08″ | 42 | 1.65″ |
| d2 | 29 | 1.14″ | 70 | 2.75″ |
| d3 | 59 | 2.32″ | 100 | 3.93″ |
| d4 | 29 | 1.14″ | 67 | 2.63″ |
| d5 | 56 | 2.20″ | 96 | 3.78″ |

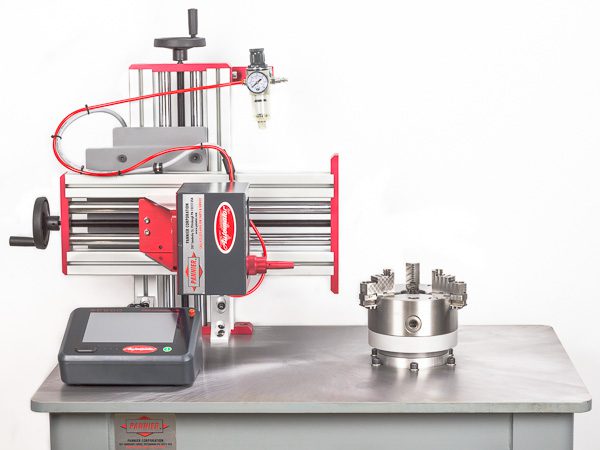

Heavy Duty Rotary Fixture
Maximum Part Weight: 36 kg / 80 lbs*
Item # M3M00-016
| Min | Max | |||
| mm | in | mm | in | |
| d1 | 3 | .12″ | 64 | 2.52″ |
| d2 | 42 | 1.65″ | 96 | 3.81″ |
| d3 | 115 | 4.53″ | 160 | 6.30″ |
| d4 | 62 | 2.44″ | 121 | 4.76″ |
| d5 | 115 | 4.53″ | 160 | 6.30″ |
* Weight limitation may be more or less, depending on the configuration of the part.
Easy Setup
The AC500 universal controller makes setup fast and easy. Use the intuitive touchscreen interface to build your marking programs and adjust the size, style, location, and marking speed of each field to achieve the best mark.
Mistake-free Marking
Use advanced data entry methods to eliminate data entry mistakes. Set automatic date, shift, and serial number fields. Send data automatically from a bar code scanner, spreadsheet, or data file from your MES/ERP system.
Security
Use passwords to protect your marking programs from unwanted changes. All programs and files can be copied to a USB storage device for backup and transfer to additional controllers.
