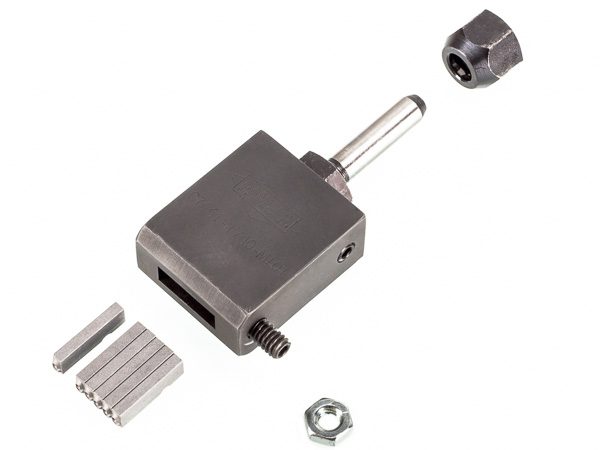

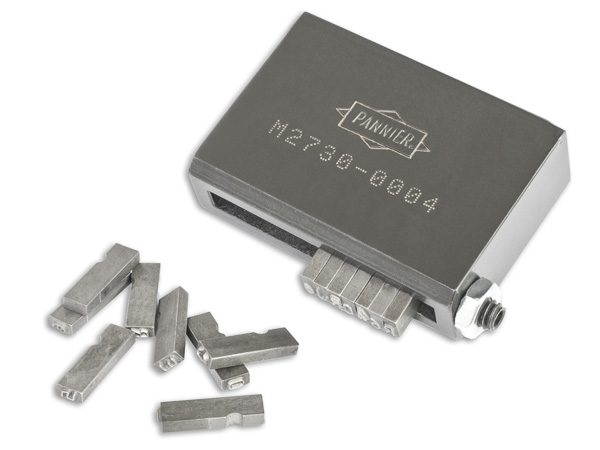

Shank-mount type holders for use in stamp marking machines and presses are ideal for repetitive numbering and coding tasks. Standard and custom-made holders can be used with individual character type and/or multi-character logotypes. One-piece construction is drilled and tapped at the top to accept a threaded shank for mounting. Stocked type holders feature a set screw to retain type in the slot.

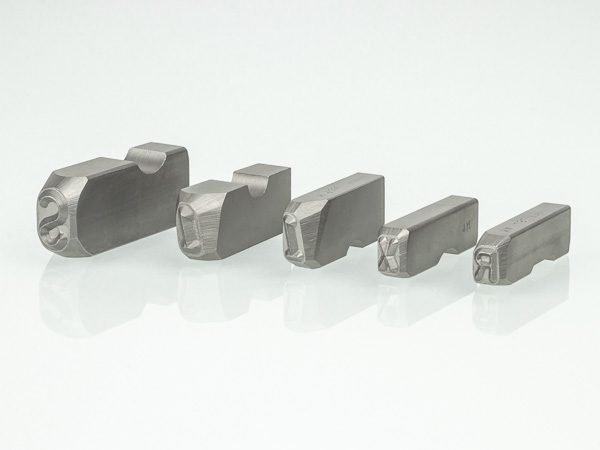

Standard Type
Standard type features sharp face gothic style characters and is hardened to 58-60 HRC for marking surfaces as hard as 32 HRC (Rockwell C hardness). Standard sizes are made to be used in the standard holders listed above.
Marking Force
To calculate the impact force required to mark your material, refer to the Stamping Force chart for Pannier marking presses.

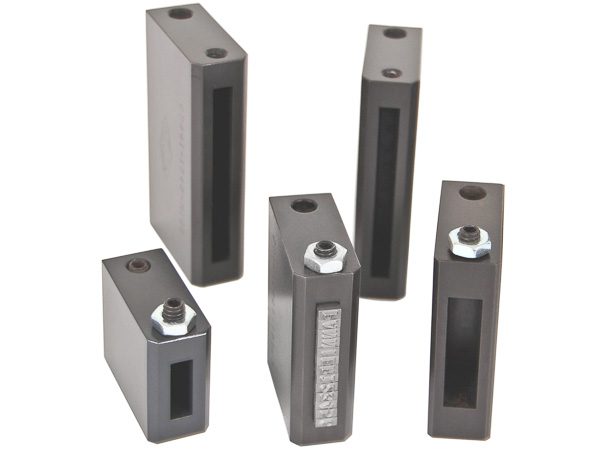

Standard Holders
| Item No. | Mortice Size (T/B x L/R) | Character Size & Number of Pieces per Holder | ||||
|---|---|---|---|---|---|---|
| 1/16″ | 3/32″ | 1/8″ | 3/16″ | 1/4″ | ||
| C7441-1740-M101 | .25″ x .787″ | 12 | 6 | 6 | ||
| C7441-1740-M102 | .25″ x 1.670″ | 26 | 13 | 13 | ||
| C7441-1740-M103 | .25″ x 2.54″ | 40 | 20 | 20 | ||
| C7441-1760-M102 | .375″ x 1.57″ | 6 | 6 | |||
| C7441-1760-M103 | .375″ x 2.35″ | 9 | 9 | |||
Custom Holders & Type
Custom single-line and multiple-line holders can be manufactured to your requirements. Available with standard or custom size mounting holes and shanks, and your choice of type retaining method (set screws, cotter pins, or draw pins). Custom-made type is available as individual characters, multi-character logotypes, and logos/symbols.
| Character Size | Type Size |
|---|---|
| 1/16″ character | 1/16″ W x 1/4″ H x 7/8″ L |
| 3/32″ character | 1/8″ W x 1/4″ H x 7/8″ L |
| 1/8″ character | 1/8″ W x 1/4″ H x 7/8″ L |
| 3/16″ character | 1/4″ W x 3/8″ H x 7/8″ L |
| 1/4″ character | 1/4″ W x 3/8″ H x 7/8″ L |
