REA JET 2.0 Ink Jet Print Heads

ENGINEERED FOR ULTIMATE PERFORMANCE

The world’s most reliable large character ink jet print head is now even better. Re-engineered with an improved design and new internal components, the new REA JET 2.0 print heads operate at extremely high speeds while offering improved print quality and a significantly longer life cycle.

  • New high-tech internal materials increase reliability and print quality.
  • Re-engineered design reduces wear and tear inside the head, so heads last longer between cleanings or repairs.
  • 2.0 heads are compatible with all current and older REA JET DOD printing equipment.
  • The print frequency is twice as fast when used with the new REA JET TITAN controller, making it the fastest large character print head on the market.  Print at speeds up to 600 meters/minute (1,960 feet/minute)!

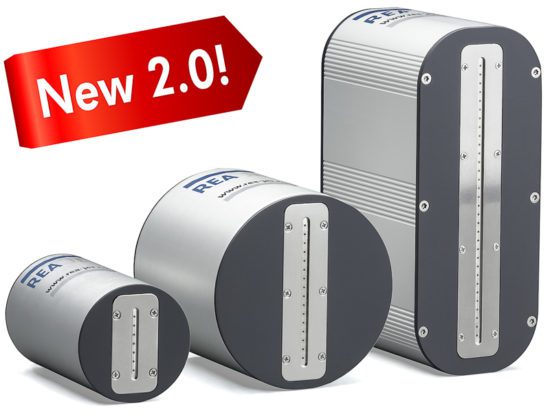

New REA JET 2.0 DOD Ink Jet Print Heads

REA JET DOD Print Head Features

  • IP65 protection from dust and water splashes
  • Resistant to humidity, temperature fluctuations, and vibration
  • Precise dot size control to achieve the right balance between print quality and ink usage
  • Compatible with solvent-based (MEK, ethanol, etc.) or solvent-free (water-based) inks
  • Recirculating heads ensure consistent performance with pigmented inks
  • No air needed
  • Print in any direction: on the top, side, or bottom of your product
REA JET 16 dot head inside view

Unique Design

The unique design allows the use of difficult inks without sacrificing reliability.

16 dot print head back - recirculating with purge button

Purge Pushbutton

Quickly clean and purge the print head without interrupting the production process.

Print Head Sizes

All print heads are available in versions
for running dye-based, pigment-based, or
rubber-based inks.

 REA JET 7 dot DOD print head REA JET 16 dot DOD print head REA JET 32 dot DOD print head
7-dot Print Head 16-dot Print Head 32-dot Print Head
Print Height 9 to 27 mm
.35″ to 1.06″		 9 to 67 mm
.35″ to 2.64″		 9 to 140 mm
.35″ to 5.51″
Lines of Text Per Head 1 line 1 or 2 lines 1 to 5 lines
Fonts (dots tall x dots wide) 5 x 5  (1 line)
7 x 5  (1 line)		 5 x 5  (2 lines)
7 x 5  (2 lines)
10 x 10  (1 line)
16 x 10  (1 line)		 5×5  (up to 5 lines)
7×5  (up to 4 lines)
10×10  (up to 3 lines)
15×10  (up to 2 lines)
32×20  (1 line)
Text and Graphics ✓ ✓ ✓
Bar Codes (Code 39, Int 2/5) ✓ ✓ ✓
2D Data Matrix Codes (ECC 200) ✓ ✓
Available Nozzle Sizes: 80, 130, 180, 270, 350 micron ✓ ✓ ✓
Dimensions
H x W x D		 60 x 60 x 101 mm
2.4″ dia. x 4″ long		 100 x 100 x 101 mm
4″ dia. x 4″ long		 180 x 73 x 104 mm
7.1″ x 2.9″ x 4.1″

Download the Printhead Comparison sheet.

Print Samples

7-dot Print Head

16-dot Print Head

32-dot Print Head

Character/Message Sizes

To achieve different character or message sizes with REA JET printers, the print heads can be used numerous ways:

32-dot ink jet print on rubber
Font Selection

Messages can consist of text using different size fonts.  For example, the message above uses the 32 x 20 font and the 10 x 10 font.

adjusting character height on a 16-dot REA JET print head
Print Head Rotation

Print heads can be rotated to make character sizes smaller, as shown above.  This also places the dots closer together to form more solid characters.

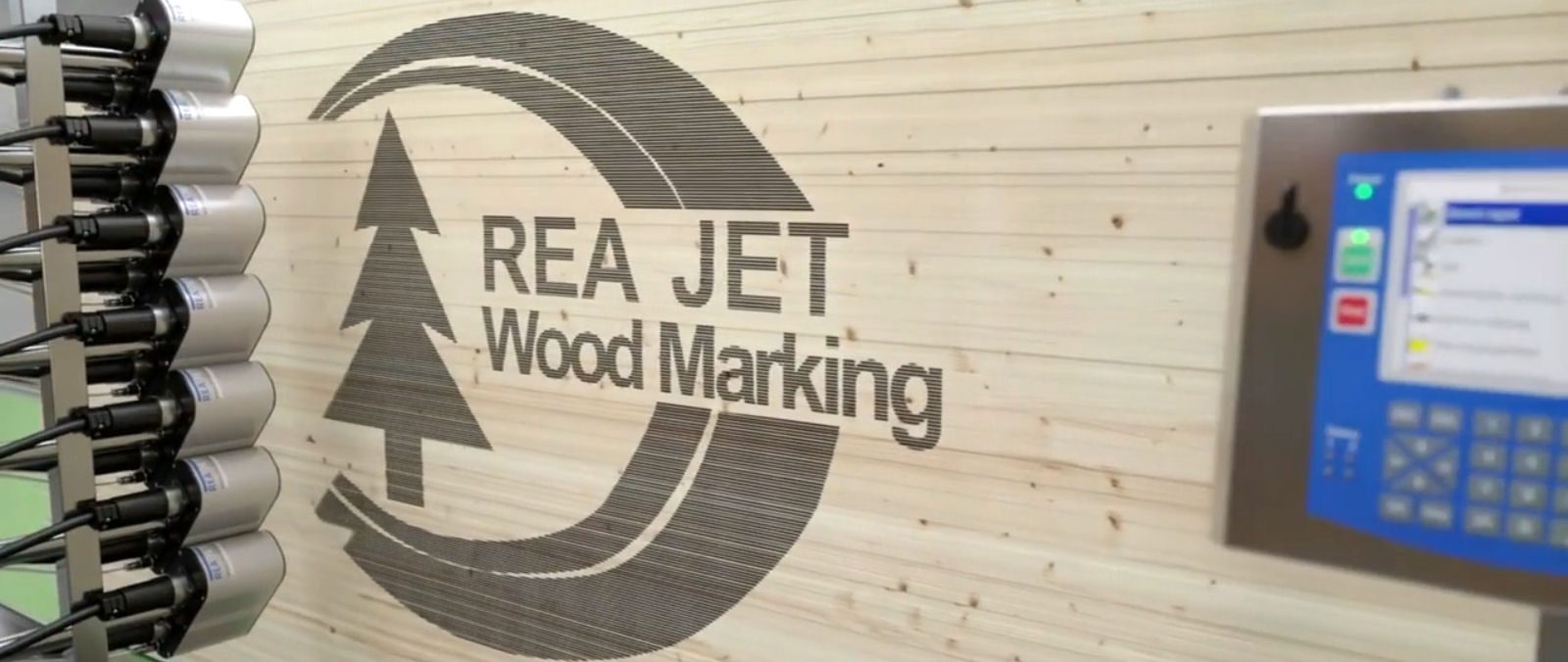

printing extra large characters and messages with REA JET ink jet printers
Print Head Stacking

Several print heads can be grouped together to work in unison to create extra large messages.
