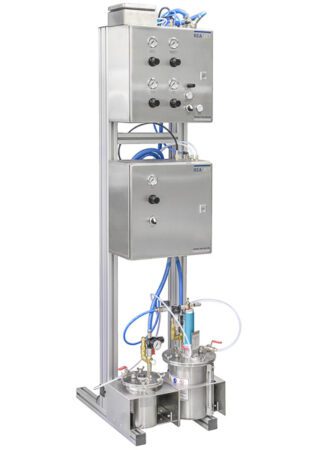

The REA JET STF turnkey spray marking systems are suitable for medium- to large-volume marking tasks and can be integrated immediately into your production environment. Systems are available for up to four different colors and multiple spray heads per color.
STF systems are supplied complete with all plumbing, hoses, mounting brackets, control cabinets, and paint tanks needed for your particular marking application. Systems are designed for manual or fully automatic operation.
- Use a remote I/O signal to trigger marking when needed
- Programmable agitation and circulation schedules keep paints or inks properly mixed
- Programmable nozzle flushing schedules keep heads ready to fire
Stainless steel control cabinets are IP54 rated for protection from dust and fluids.. All system components are mounted on heavy duty stands to suit your production needs.
Compare Spray Heads |
SR-1 |
SRM-1 |
SR-5 |
SR-7 |
|---|---|---|---|---|

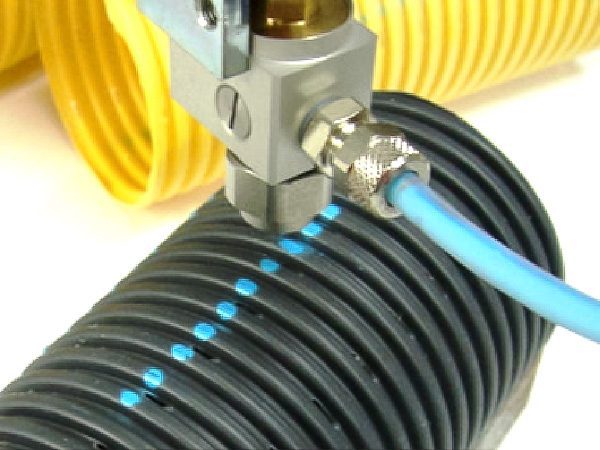

| Dots and dotted lines (round spray head) |
3 to 30 mm | 3 to 30 mm | 3 to 30 mm | 3 to 20 mm |
| Continuous lines (round nozzle head) |
3 to 25 mm | 3 to 25 mm | 3 to 25 mm | 3 to 20 mm |
| Wide surface area marking (flat nozzle head) |
20 to 60 mm | 20 to 60 mm | 20 to 60 mm | |
| Suitable for water-, dye-, and pigment-based inks | ✓ | ✓ | ✓ | ✓ |
| Suitable for abrasive consumables (pigmented ink, UV-curing paint) | ✓ | |||
| Spray distance | 3 to 100 mm | 3 to 100 mm | 3 to 100 mm | 3 to 60 mm |
| Fluid circulation | integrated | integrated | optional | integrated |
| Spray control | internal | internal | additional valve | additional valve |
| Nozzle and air control head flushing | ✓ | ✓ | ✓ | |
| Dimensions, standard version (L x W x H) |
130 x 50 x 21 mm | 130 x 50 x 21 mm | 65 x 40 x 25 mm | 37 x 20 x 20 mm |
| Weight | 400 g / 14 oz | 400 g / 14 oz | 200 g / 7 oz | 90 g / 3.2 oz |
Nozzle Sizes
Heads can be supplied with different nozzles to achieve the ideal dot or stripe size for your coding application. Available nozzle sizes are 0.3, 0.5, 0.8, 1.0, 1.2, and 1.5 mm.
Use a variety of paint and ink types and colors for marking porous and non-porous materials such as metals, plastics, and textiles.
- All-purpose solvent-based paints
- Bright pigmented paints
- Water based paints
- High temperature paints
- Special and customized inks
