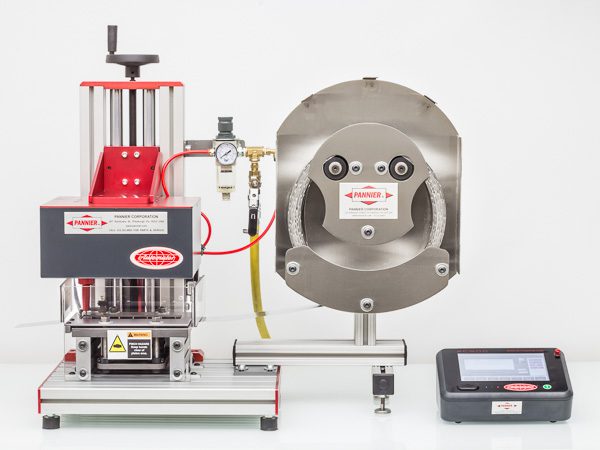

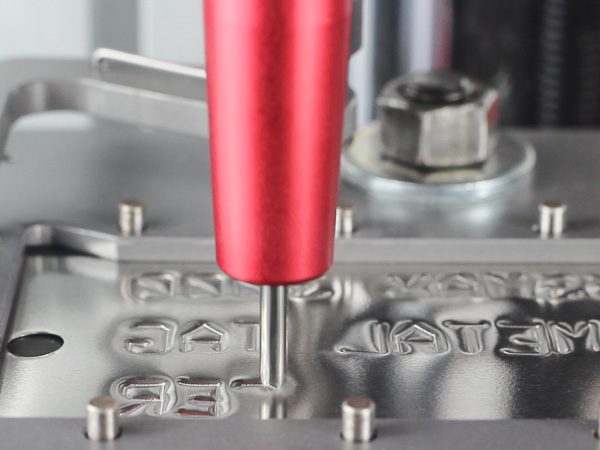

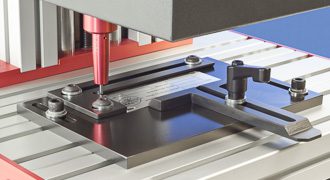

Tag making is fast and easy with the EmbossMax 3000 metal tag embossing machine. Using dot peen marking technology, the system’s marking pin can emboss characters in any size or direction on pre-fabricated metal tags.
Jam-Free Coiled Tags

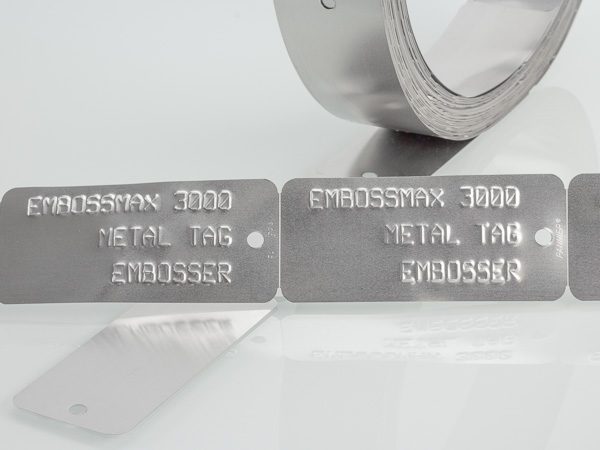

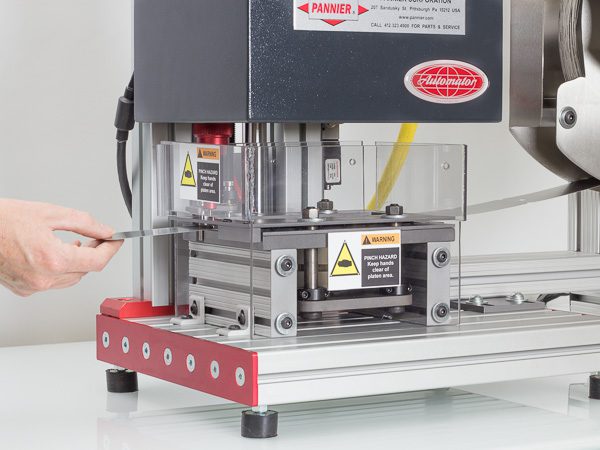

Pannier metal tags are supplied in a roll for easy, jam-free feeding through the embosser. The tag stock is fed through a clamp that holds the tags in place during marking. When marking is complete, the clamp releases and the operator manually advances the stock to the next blank tag. After tags are marked, they are snapped apart for use.
Easy, Automated Data Entry
Setting up new tag formats is fast and easy with the system’s AC500 touchscreen controller. Data to be marked on individual tags can be entered manually or automatically using one of the many data entry and communication options.
Easy Setup
The AC500 universal controller makes setup fast and easy. Use the intuitive touchscreen interface to build your marking programs and adjust the size, style, location, and marking speed of each field to achieve the best mark.
Mistake-free Marking
Use advanced data entry methods to eliminate data entry mistakes. Set automatic date, shift, and serial number fields. Send data automatically from a bar code scanner, spreadsheet, or data file from your MES/ERP system.
Security
Use passwords to protect your marking programs from unwanted changes. All programs and files can be copied to a USB storage device for backup and transfer to additional controllers.

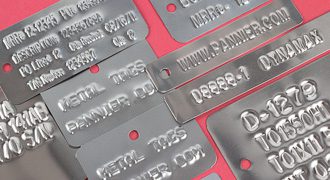

Pannier manufactures metal tags to your specifications.
| Typical Tag Sizes | Thickness | .008″ to .018″ | .203mm to .457mm |
|---|---|---|---|
| Width | 1/2″, 7/8″, 2″ or 3″ | 12.7, 22.2, 50.8, or 76.2 mm | |
| Length | 1″ to 7″ (in increments of 1/8″) |
25.4 to 177.8 mm (in increments of 3.2 mm) |
|
| Typical Tag Materials | aluminum, galvanized steel, stainless steel | ||
| Attachment Options |
|
||
| Marking Options |
|
||
| Pre-Embossing |
Tags can be supplied pre-embossed with information such as your company name or logo or the names of fields to be filled in (e.g. Grade, Weight, Customer, etc). |
||
