The Model 416 Tag Embossing Machine is designed for embossing one line of up to 20 characters on 1/2” or 7/8” wide metal tags. It allows you to easily create batches of identical tags, serialized tags, or unique tags with high quality raised characters up to 3/8″ (9.5 mm) tall.
- Emboss up to 60 tags per minute

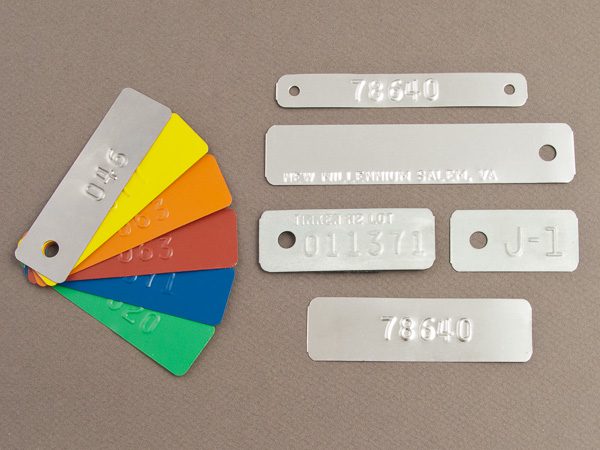

- Tags are available in various materials, colors, and with or without holes
- Tags can be supplied blank or pre-embossed with your company name or other identification
Character Selection

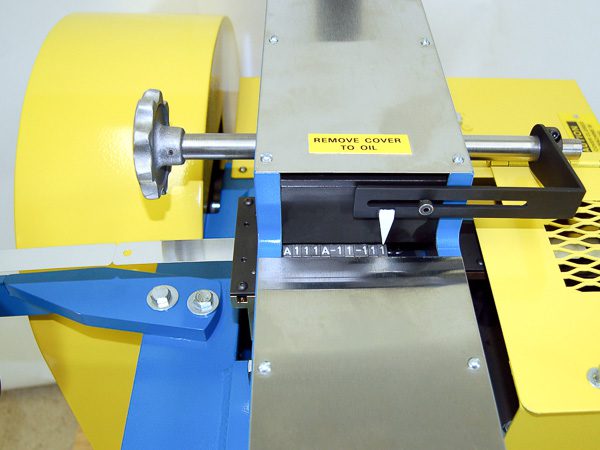

The number of characters is determined by the number and width of the embossing slides in the unit. Characters are selected by the operator by rotating a character selector wheel which moves each character slide to the required position. After the characters are selected, the operator presses the foot pedal to emboss the entire legend in one stroke. For serialization, the slides must be manually changed between strokes.
Model 416-B
This model is a foot operated unit with manual tag feed. Embossing of each tag is done by depressing the kick pedal and hand feeding the next tag into the marking position.
Model 416-GM
This model is a foot operated unit with manual tag feed. Embossing of each tag is done by activating a mechanical foot pedal and hand feeding the next tag into the marking position.

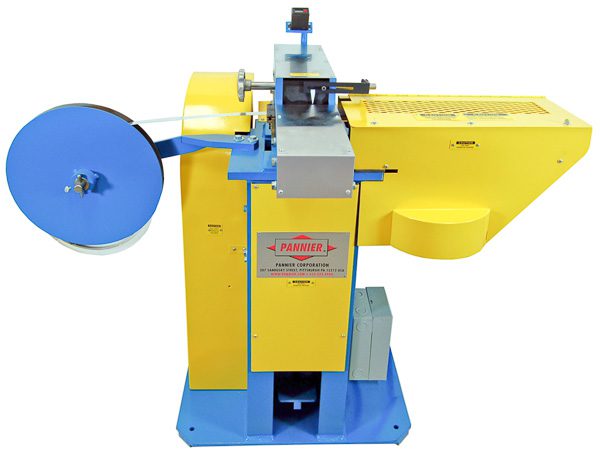

Model 416-GA
This model is a foot operated unit with an automatic tag feed system. Embossing of each tag is done by activating a mechanical foot pedal, and the next tag is then automatically advanced into the marking position. This will continue as long as the foot pedal is activated.
