Dot peen marking is a fast and error-free solution for permanent marking on metal tags and plates. Create light engraved marks, deep marks, or embossing on a wide variety of metal tag materials. Let Pannier help you build your ideal marking system.
Dot peen marking technology engraves professional, high-quality marks automatically. Create and store hundreds of marking programs for each unique tag on the AC500 touchscreen controller. Programs can include text, automatically filled fields, logos, and 2D Data Matrix codes.
- Mark tags and plates in seconds
- Program layout is fast and easy
- Use automated data entry options to eliminate errors
Great for marking:
- asset and equipment tags
- machine serial plates
- cable and hose tags
- embossed tags for paint and coat operations
Marking Heads
Several sizes of marking heads are available to accommodate the marking area needed for your tags.
ADP5090 (50 x 90mm / 2″ x 3.5″)
ADP120160 (120 x 160mm / 4.7″ x 6.3″)
ADP300400 (300 x 400mm / 11.8″ x 15.7″)

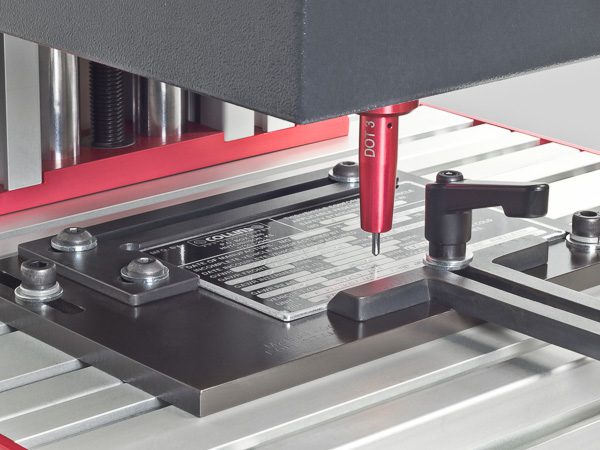

Tag Holding Fixtures
Pannier offers several standard tag holding fixtures. The most common fixture holds one tag up to 3.75″ x 5.75″ (95mm x 146mm). Custom sizes and configurations can be manufactured for your specific needs.
Carbide Marking Pins
Choose from a variety of interchangeable marking pins for light engraving to deep stamping.
- 3mm dot peen pin
- 6mm dot peen pin
- 12mm dot peen pin
- 3mm vibropeen pin
- 4mm vibropeen pin

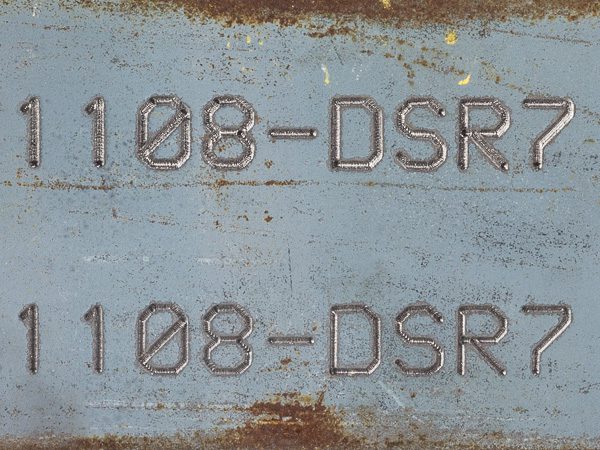

Light engraving, deep stamping, embossing (raised characters) and debossing can be accomplished.
serial plate engraving
metal tag engraving

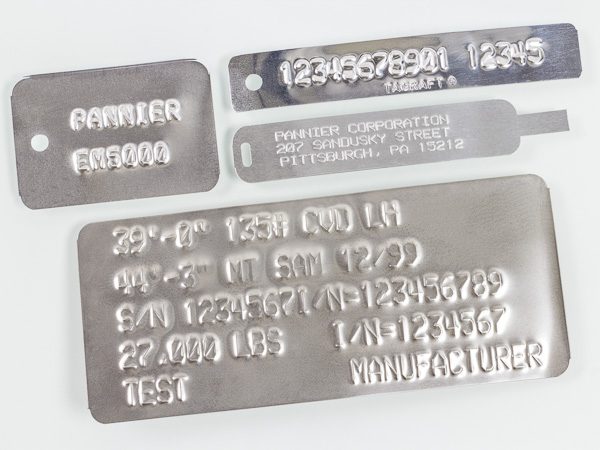

metal tag embossing
equipment plate engraving
Easy Setup

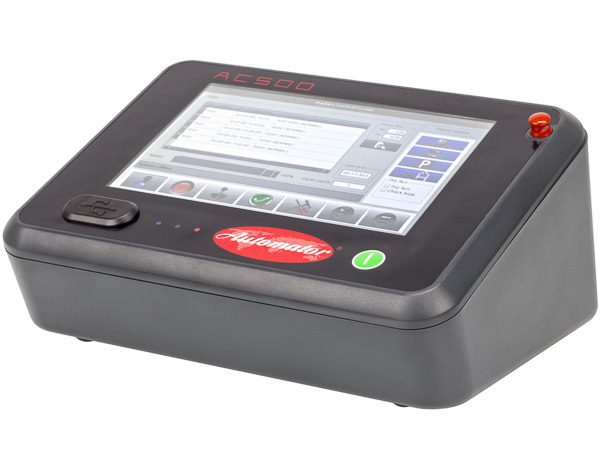

The AC500 universal controller makes setup fast and easy. Use the intuitive touchscreen interface to build your marking programs and adjust the size, style, location, and marking speed of each field to achieve the best mark.
Mistake-free Marking
Use advanced data entry methods to eliminate data entry mistakes. Set automatic date, shift, and serial number fields. Send data automatically from a bar code scanner, spreadsheet, or data file from your MES/ERP system.
Security
Use passwords to protect your marking programs from unwanted changes. All programs and files can be copied to a USB storage device for backup and transfer to additional controllers.
